Hydraulic Crimping Tool 8 Ton with 8 Die Pairs for 4-70mm² Copper Cable Lugs and Terminals
Hydraulic Crimping Tool 8 Ton with 8 Die Pairs for 4-70mm² Copper Cable Lugs and Terminals
- Up to 8 tonnes of crimping force with 10mm maximum travel.

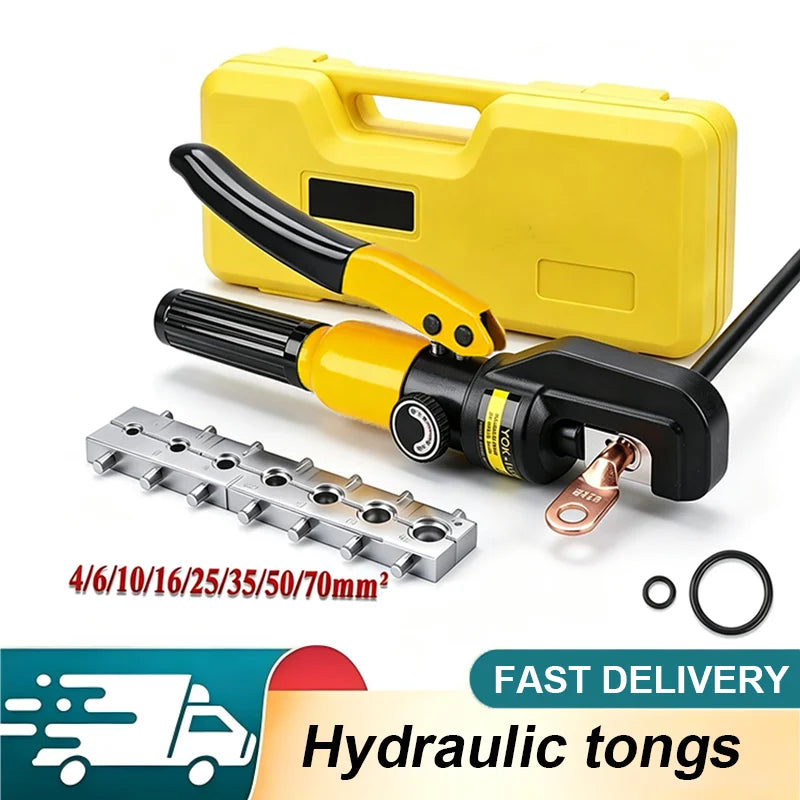

- Eight hexagonal die pairs covering 4 to 70mm² copper cable.
- Head rotates 180° for awkward angles.
- Delivery cost shown at checkout, before you pay. Shipping info
- Covered by the Australian Consumer Law. Returns & faults
- Price in AUD, GST included. Secure, encrypted checkout.
- Question about fit or specs? Ask us first
Overview

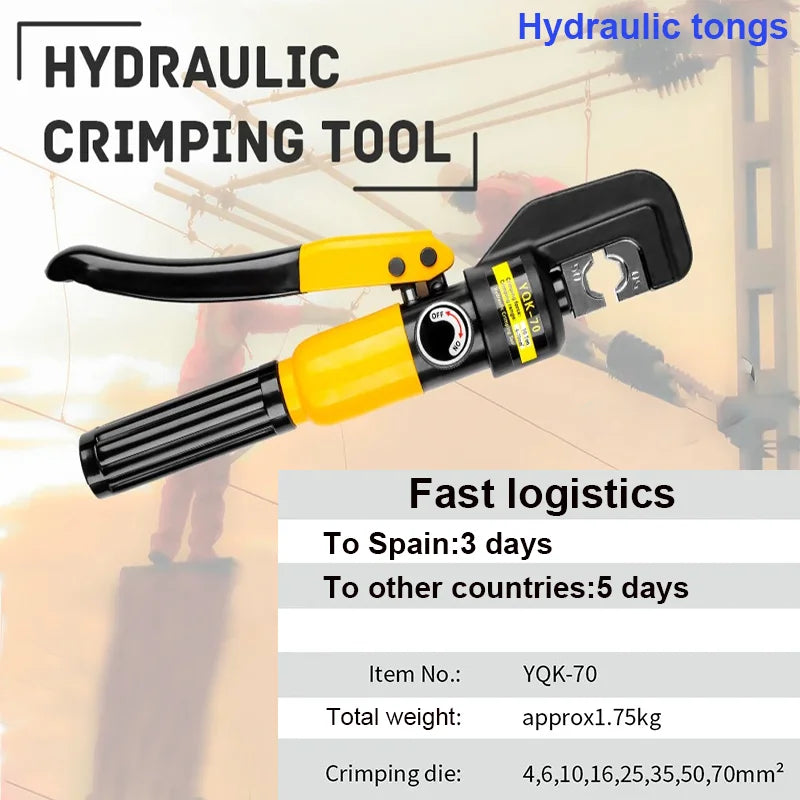

Hydraulic Crimping Tool 8 Ton with 8 Die Pairs
This handheld hydraulic crimping tool presses copper cable lugs and terminals from 4mm² up to 70mm² with up to 8 tonnes of force. Eight die pairs are included (4, 6, 10, 16, 25, 35, 50 and 70mm²), each forming a hexagonal crimp, and the tool suits terminals made to DIN, AWG and JIS sizes. The pump body is a single piece, the head rotates 180° to reach awkward connections, and a safety valve clicks once full pressure is reached. It is manually operated, weighs 2.65kg and lets one person crimp heavy cable at home, in the workshop or when working at height.
Part of Workshop & Tools
Key features
What it does
-
Up to 8 tonnes of crimping force with 10mm maximum travel.
-
Eight hexagonal die pairs covering 4 to 70mm² copper cable.
-
Head rotates 180° for awkward angles.
-

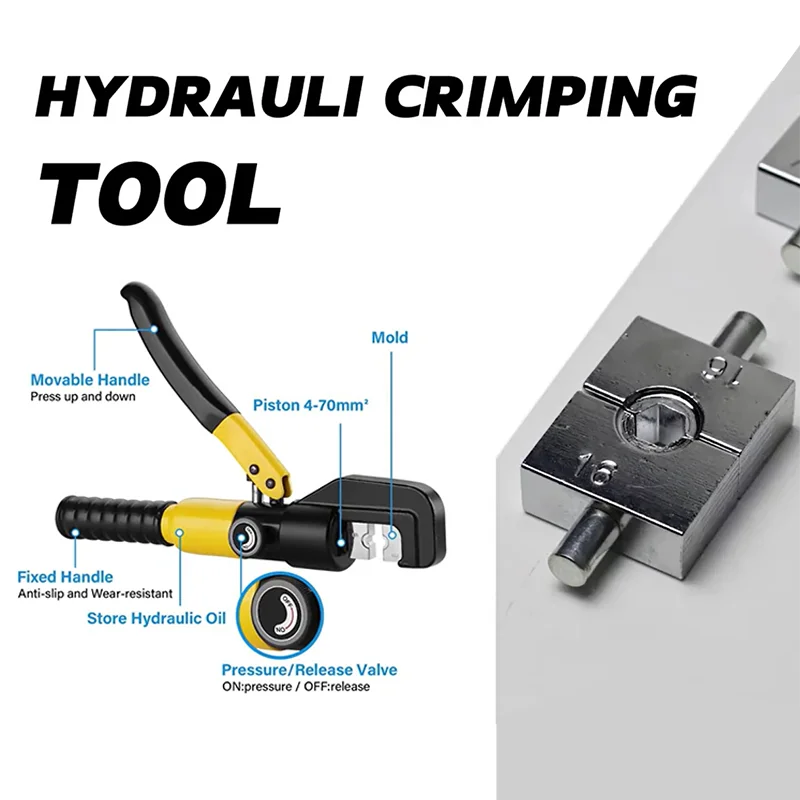

Safety valve that clicks when the crimp reaches full pressure.
Specifications
The numbers
| Size | Not specified in the supplied product data; weight 2.65kg |
|---|---|
| Power | Manual hydraulic |
| Capacity | Copper cable 4-70mm²; maximum pressure 8T; maximum travel 10mm |
| Compatibility | Cable lugs and terminals to DIN, AWG and JIS specifications |
| Usage Type | Cable crimping for home DIY and workshop use |
| Model | YQK-70 |
| Crimp form | Hexagonal |
Questions
Questions & answers
About this product
Which cable sizes does it crimp?

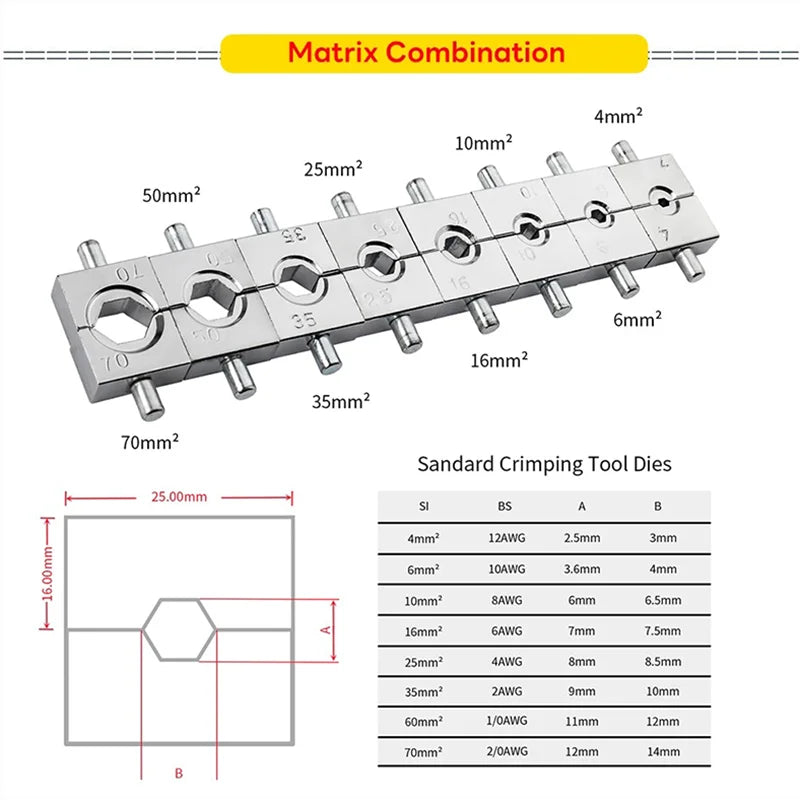

Copper cable from 4 to 70 mm², with eight die pairs: 4, 6, 10, 16, 25, 35, 50 and 70 mm².
Which lugs and terminals does it suit?
Copper lugs and terminals made to DIN, AWG and JIS sizes. Each die forms a hexagonal crimp.
How do I know the crimp is done?
The safety valve clicks once full pressure is reached.
Can I use it in a tight spot?
Yes. The head rotates 180° to reach awkward connections, and the tool weighs 2.65 kg.
